    Used Highpressure Compressor # 10-24752

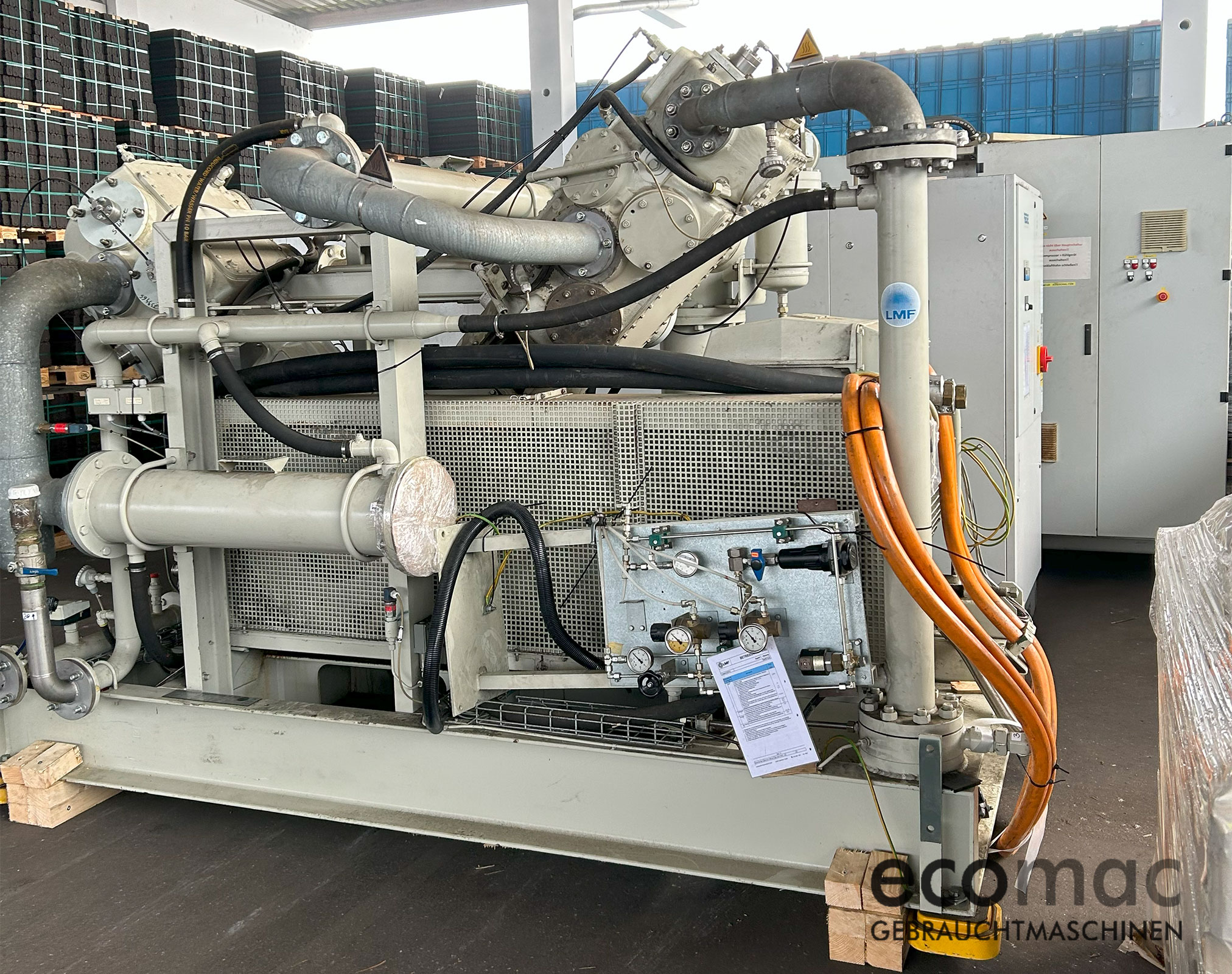

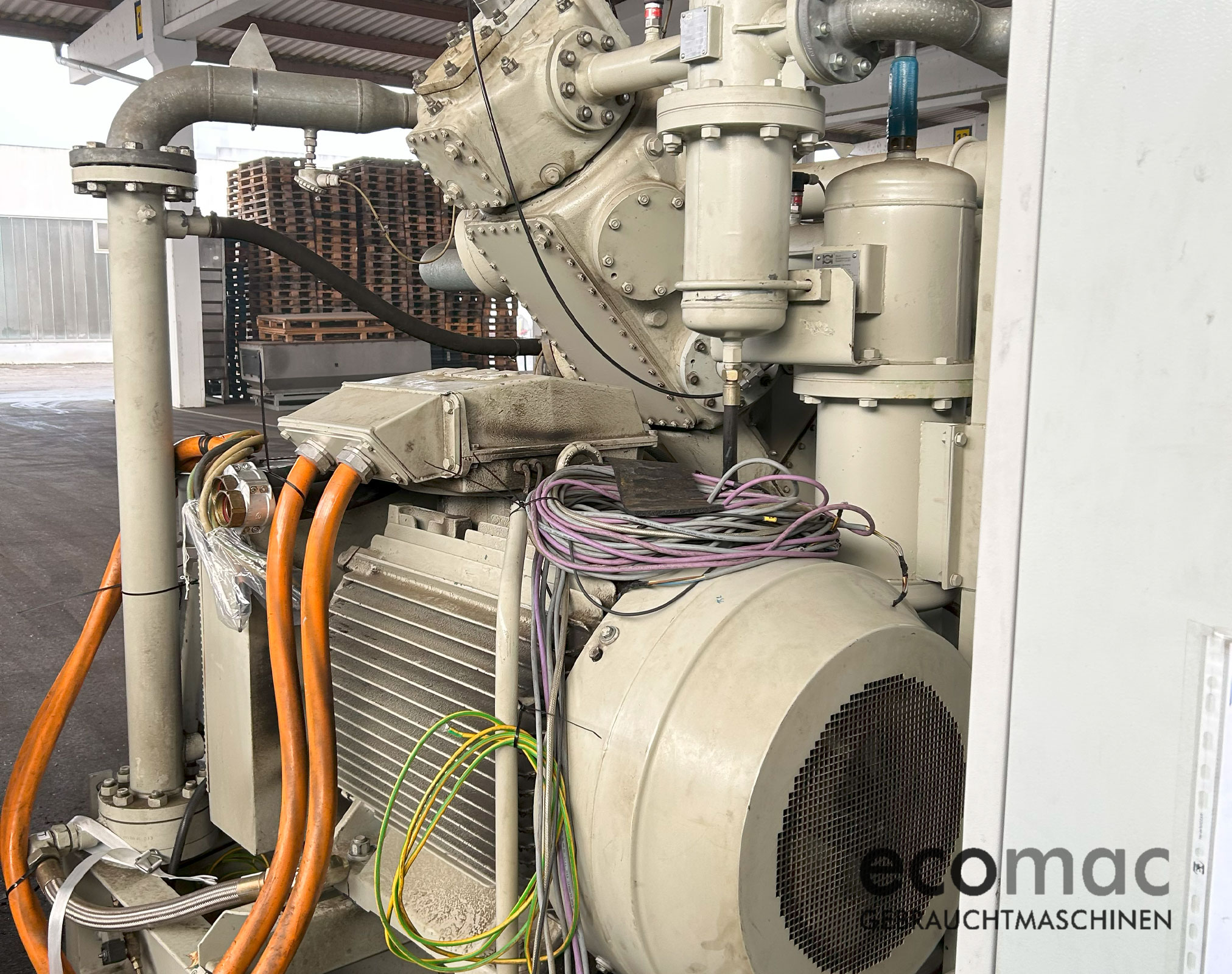

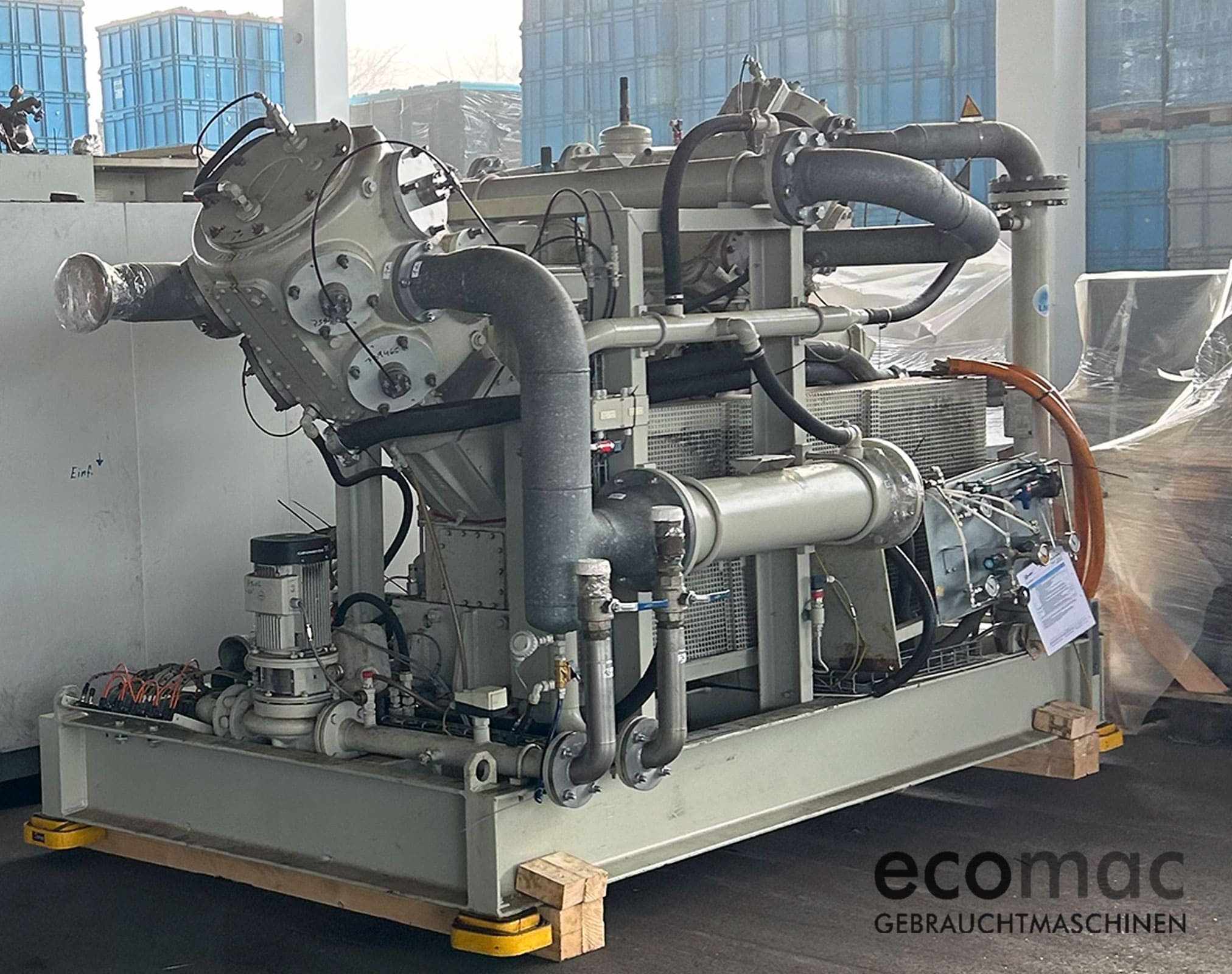

    This high-pressure compressor for blow molding machines is a combined blower/piston compressor unit from the manufacturer LMF. The compressor is equipped with a system that allows the compressed air recovered from the blow molding machine to be fed directly back into the compressor. It is possible to feed back up to 80% of the compressed air volume supplied to the blow molding machine at a pressure of 6 bar. Further information is available upon request.

    Execution number of phases 4 (inkl. positive displacement blower)
      inlet pressure 1,013 bar
      outlet pressure 35 bar
      outlet temperature approx. 20°C over ambient temperature
    Kind of cooling closed cooling water loop, cooling fresh water
    Voltage 400 V
    Frequency 50 Hz



    Details

    Number
    10-24752
    Product
    LMF
    Model
    EcoPET VC-B 250-35 plus
    Performance
    915-1664 m³/h til max. 40 bar
    Equipment
    3-step piston compressor + 1 positive displacement blower
    Year
    2007
    Delivery
    promptly

    Download

    Download Sheet #10-24752

    Download entire machine list
