Used Depalletizer # 10-23910

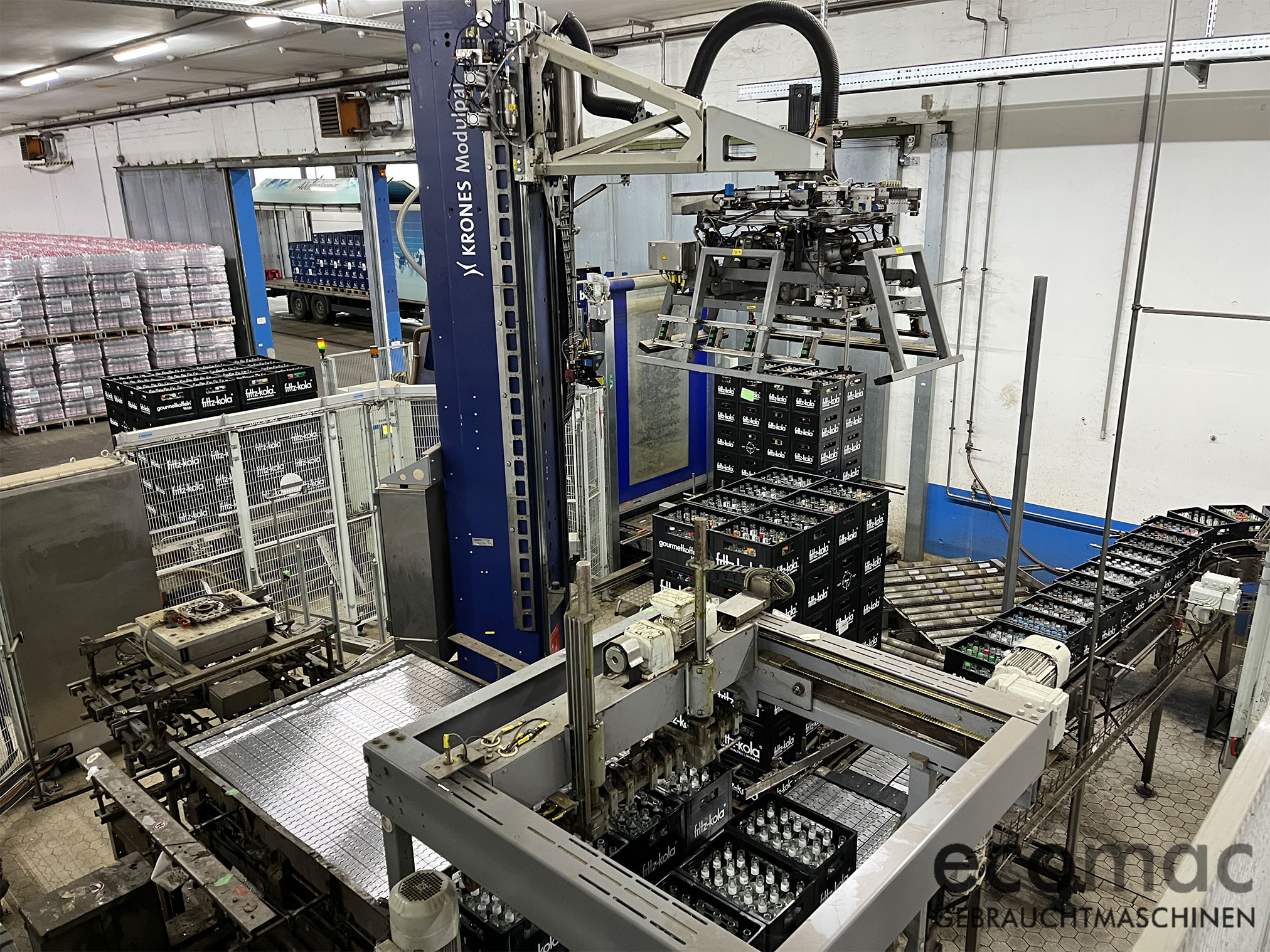

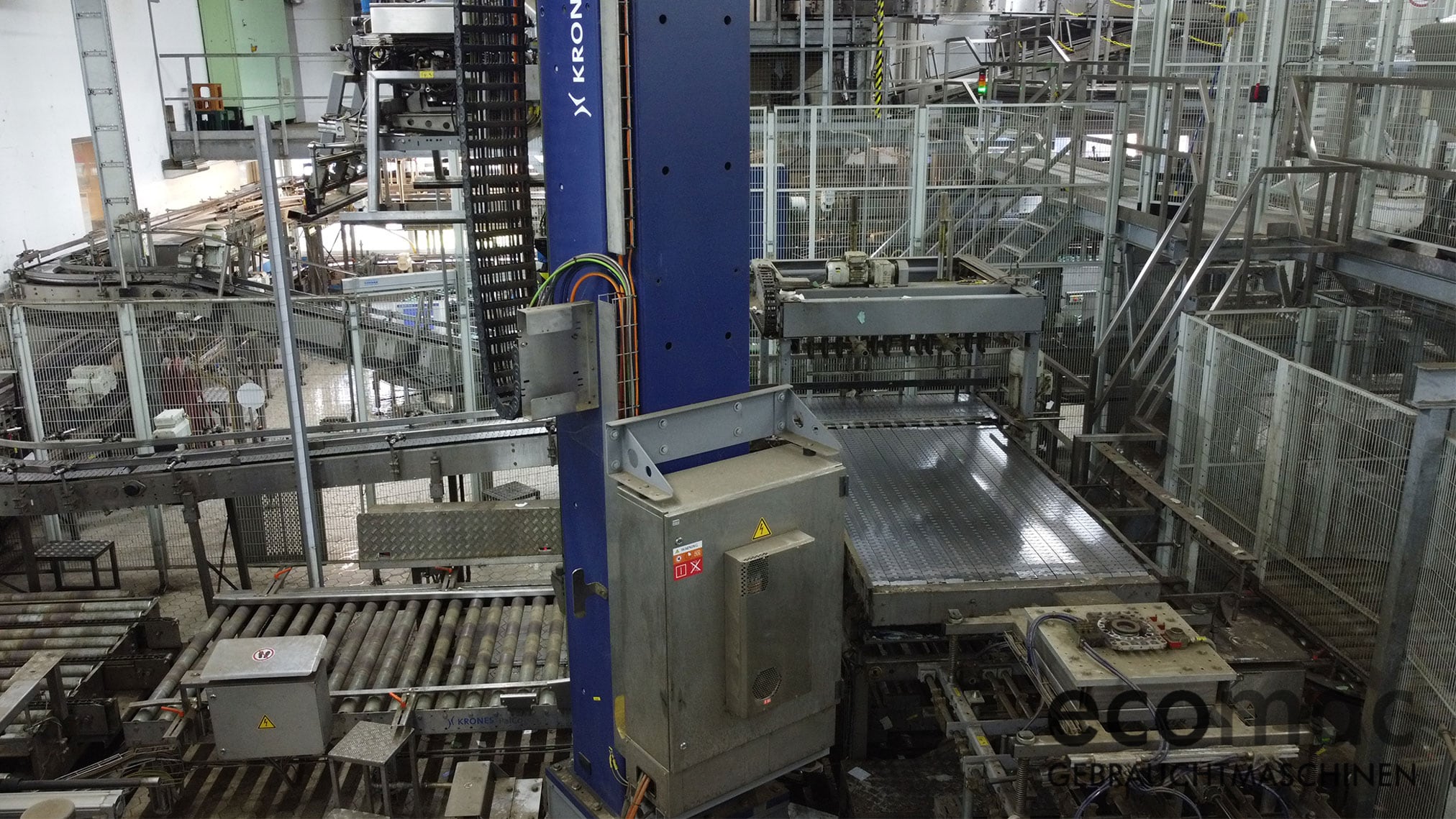

This depalletizer is installed in a glass bottling line with a capacity of 30.000 bottles/h. In June 2023 the machine has 10.500 working hours. This equipment was running until end of 2023 and depalletizes plastic crates from Euro pallets. More information on request.
| Execution | 1-column machine |
|---|---|
| fully automatic grippe head change | |

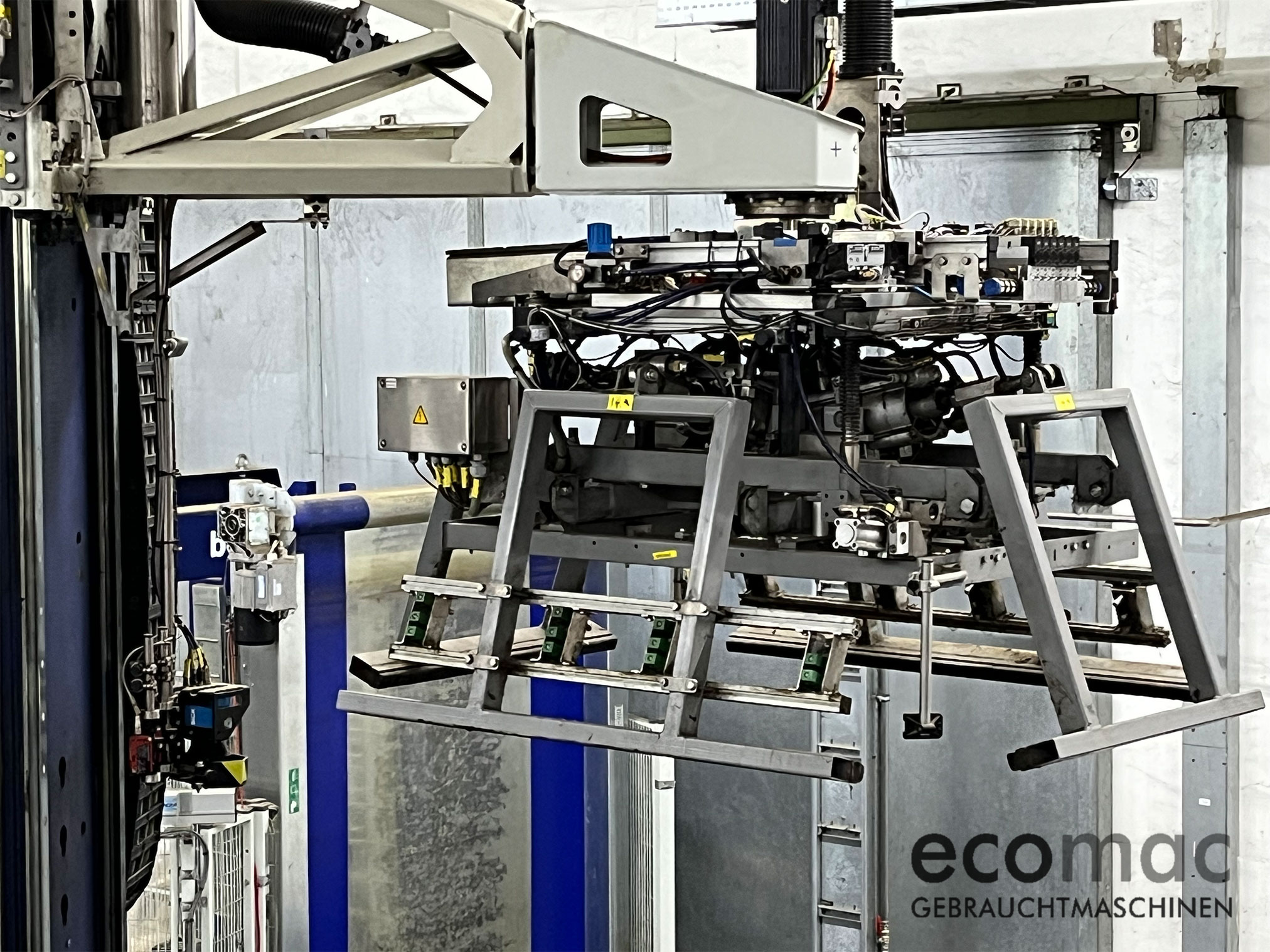

| hook gripper and jaw gripper head | |
| 2 changing stations for gripper head storage | |
| processing of complete layers | |
| height crate conveyor 1.000 mm | |
| height pallet conveyor 680 mm | |
| separating conveyor with drawing mechanism | |
| steel chain | |
| alone standing fence guarding with P.E. sensors | |
| Operation | 15" colourdisplay with ZenOn |
| Control Unit | Siemens S7 300 |
| Network | TN-S-net, 230/400 V - 50 Hz |
Details
Number
10-23910
Product
Krones
Model
Modulpal 3AR
Performance
300 layers/h (nominal)
Equipment
Plastic crate from Europallet 1.200x800mm
Year
2015
Delivery
promptly
Download
Download Sheet #10-23910Download entire machine list
