Used Packing Machine # 10-24814

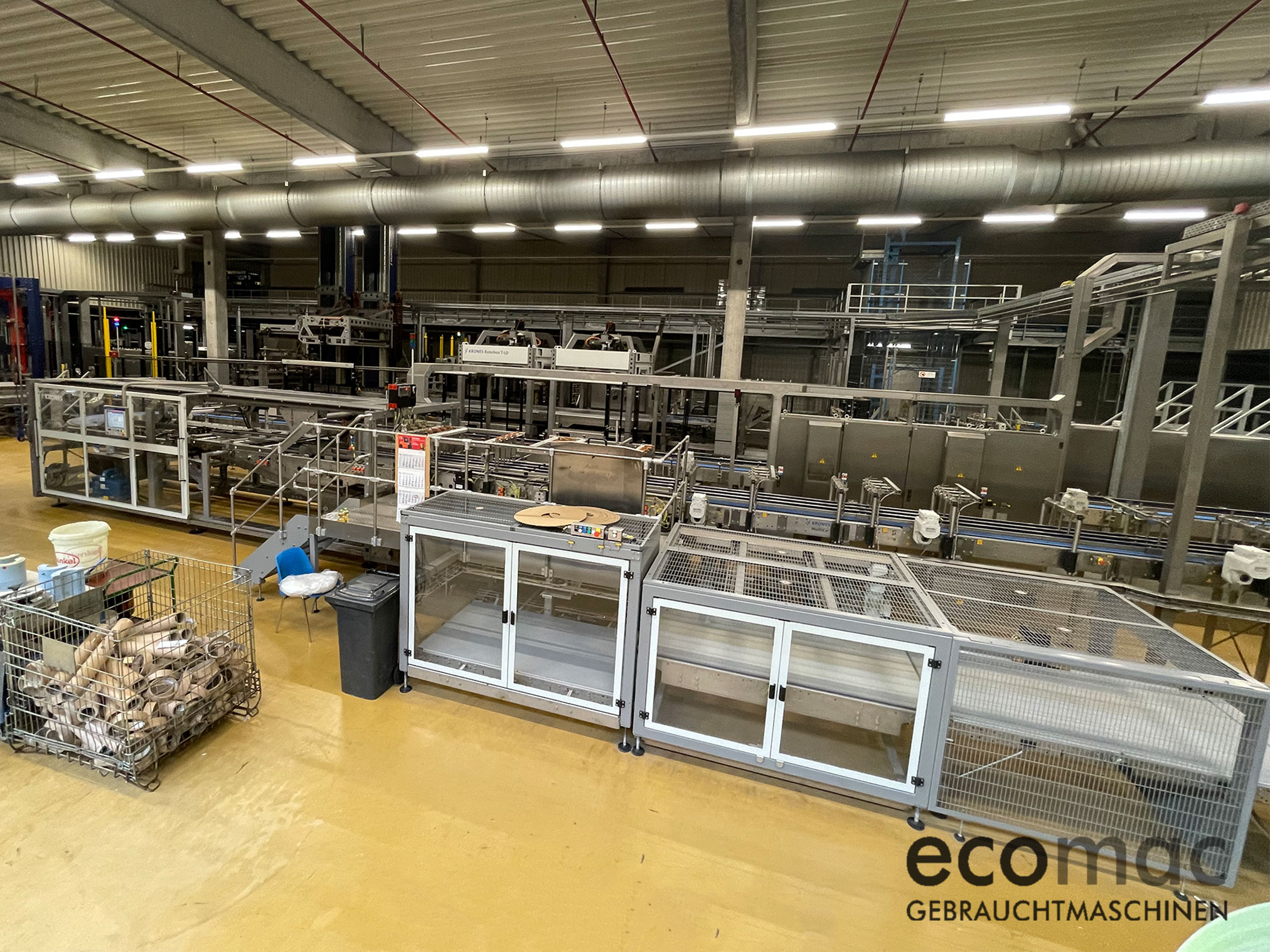

We are pleased to offer you this packaging machine for multipacks in trays. The multipack infeed has three lanes. The machine has already been dismantles and is stored in a warehouse. Further details are available upon request.
Execution | Conveyor in the machine with push chain |
---|---|
Adjustment lane width in pairs | |
Pack spacing with link spacer | |
Nordson glue unit for tray gluing | |

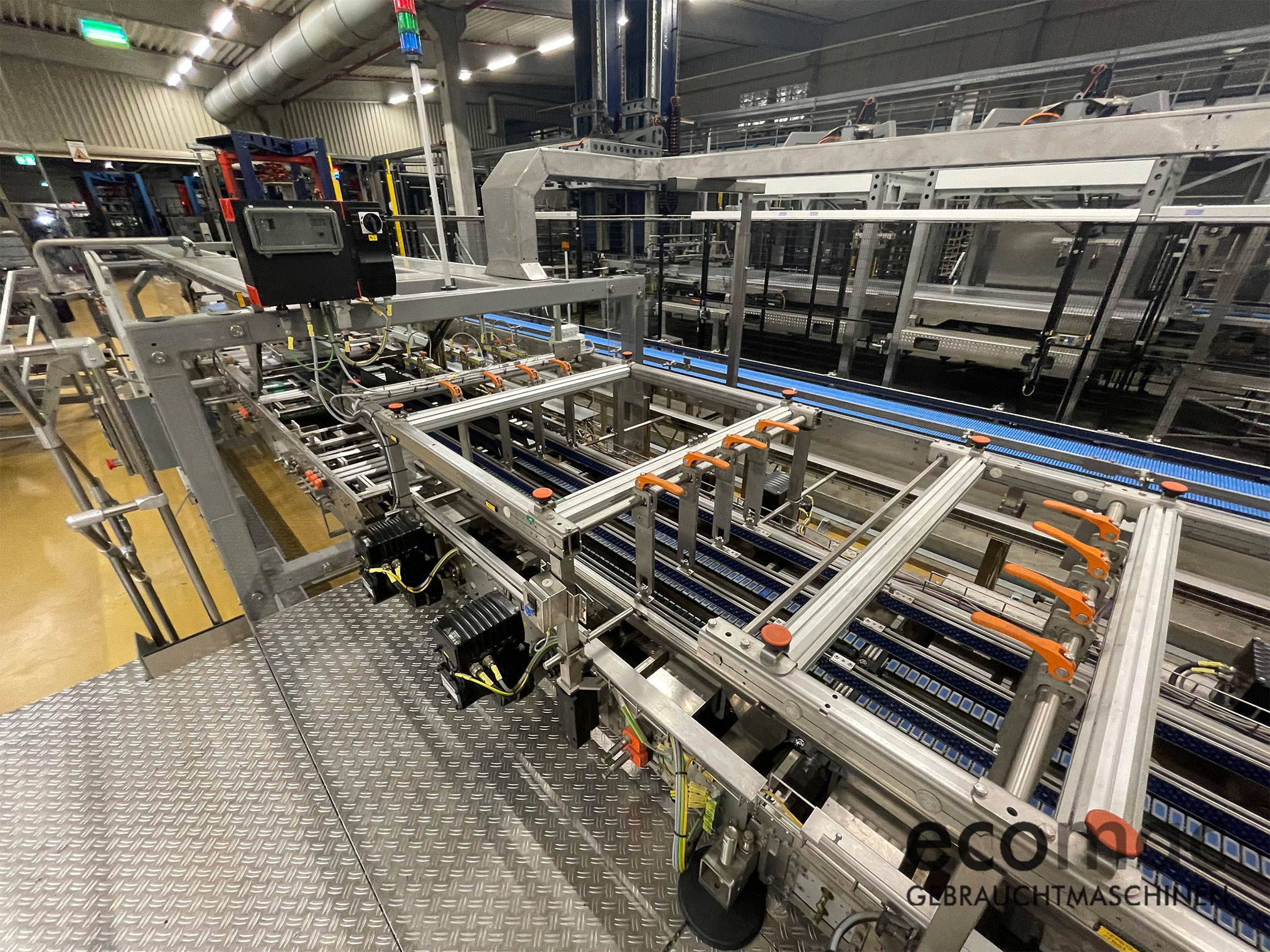

Infeed | length 2.920 mm, 10 chain lanes, blunt connection, individually driven |

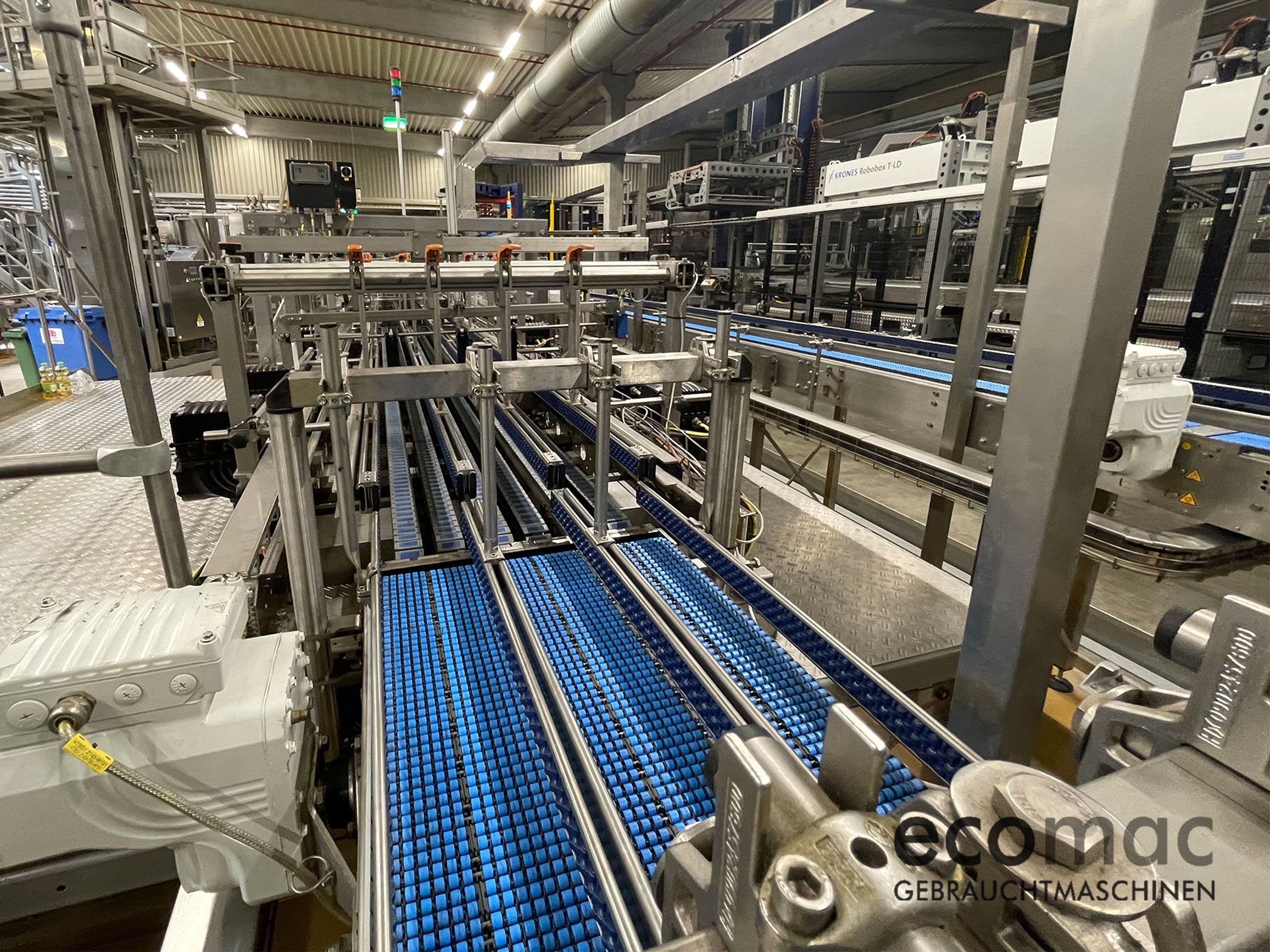

3 Pack lanes | |
feed of packing objects upstream infeed with guided lanes | |

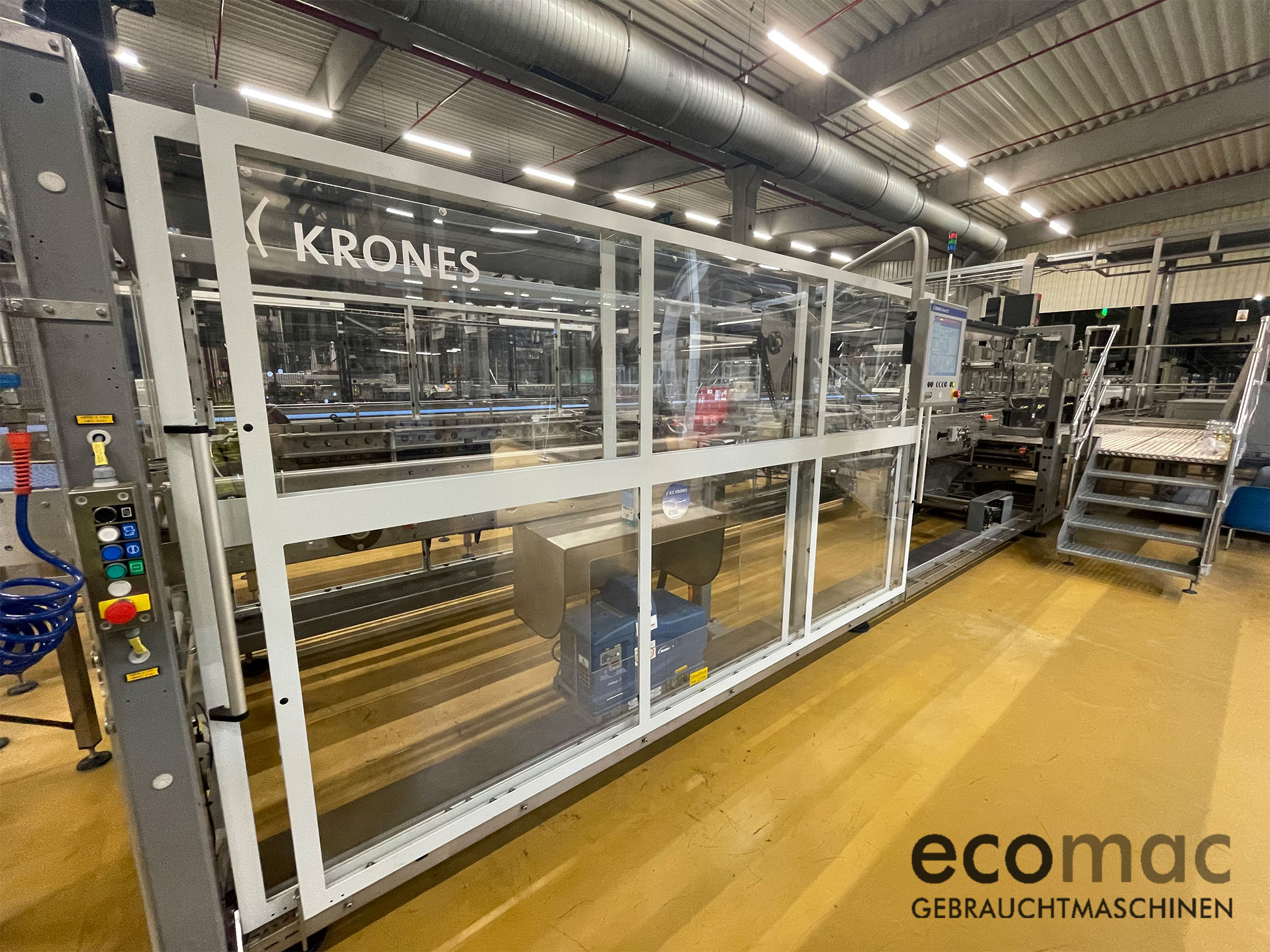

Mounted machine guarding | lockable sliding doors |
Blank feed unit | lifting magazine with stack preparation |
stack preparation in Z-arrangement with stack lift | |
Operation | 15" colour touch display with ZenOn |
Current supply | TN-C-net, 230/400 V, 50 Hz |
Control Unit | Siemens S7 300 |
Details
Number
10-24814
Product
Krones
Model
Variopac Pro-T-7
Performance
70 cy/min
Equipment
Multipacks in tray
Year
2017
Delivery
promptly
Direction
R-L
Download
Download Sheet #10-24814Download entire machine list
