Used Labelling Machine # 10-25272

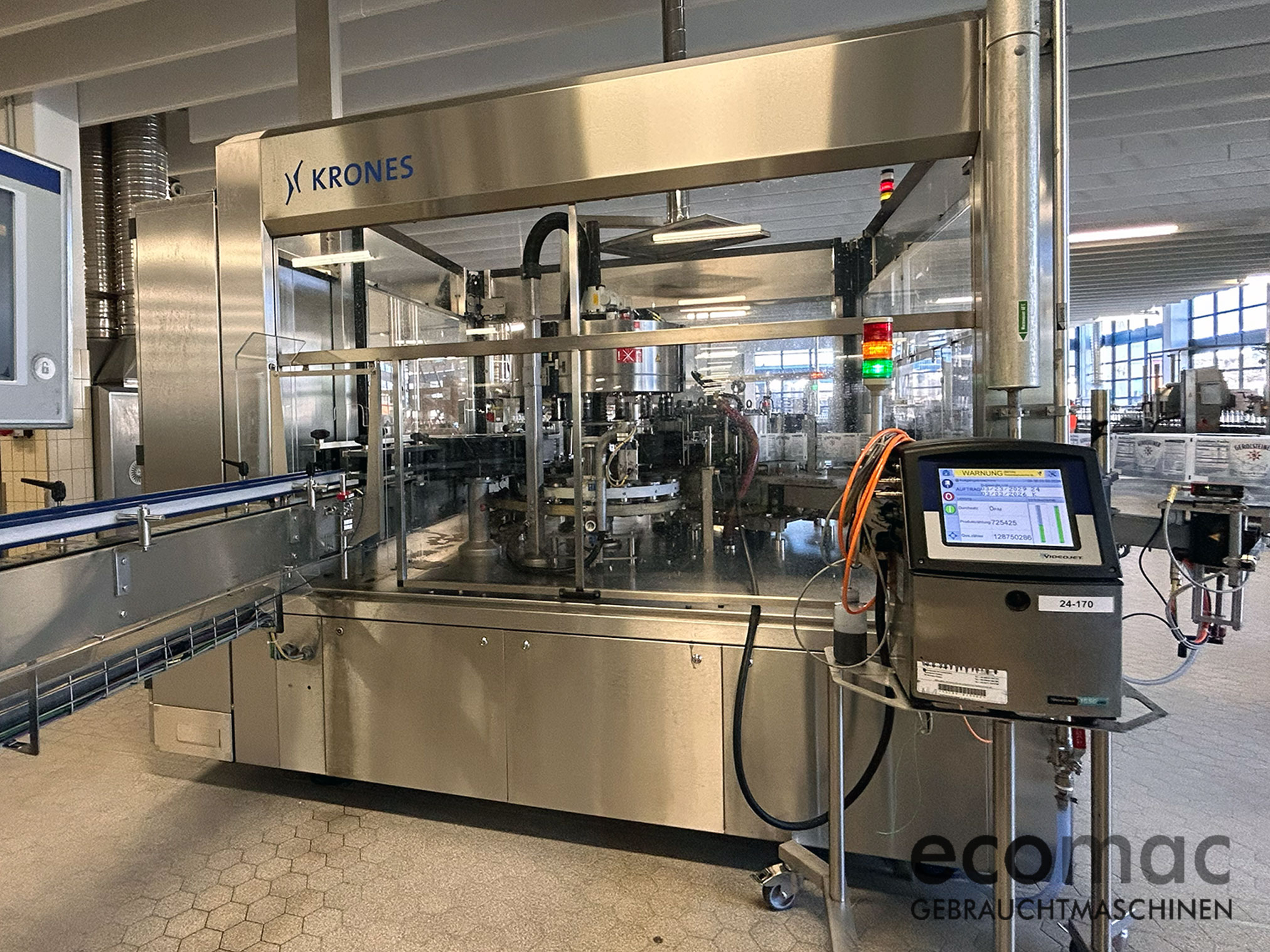

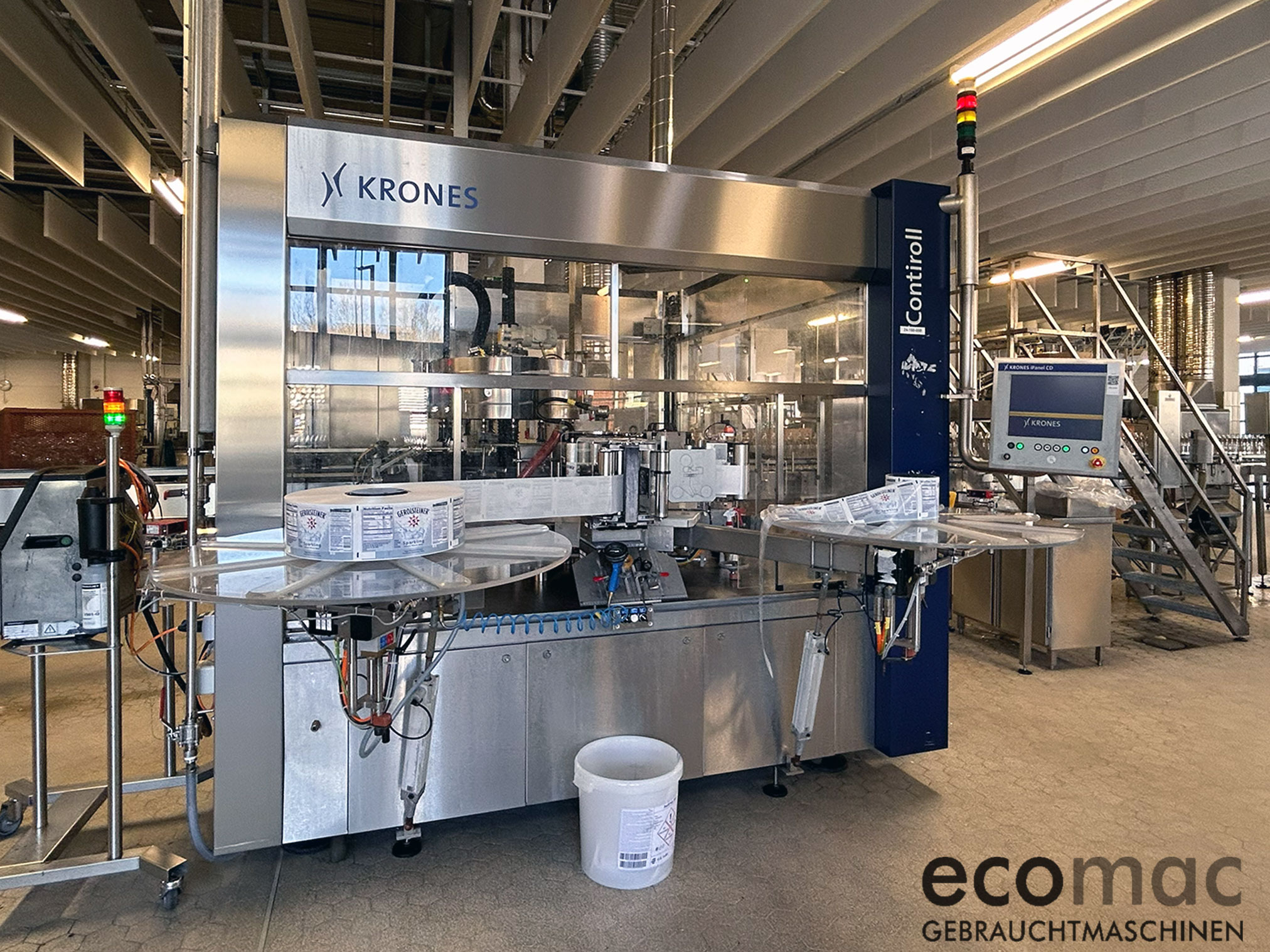

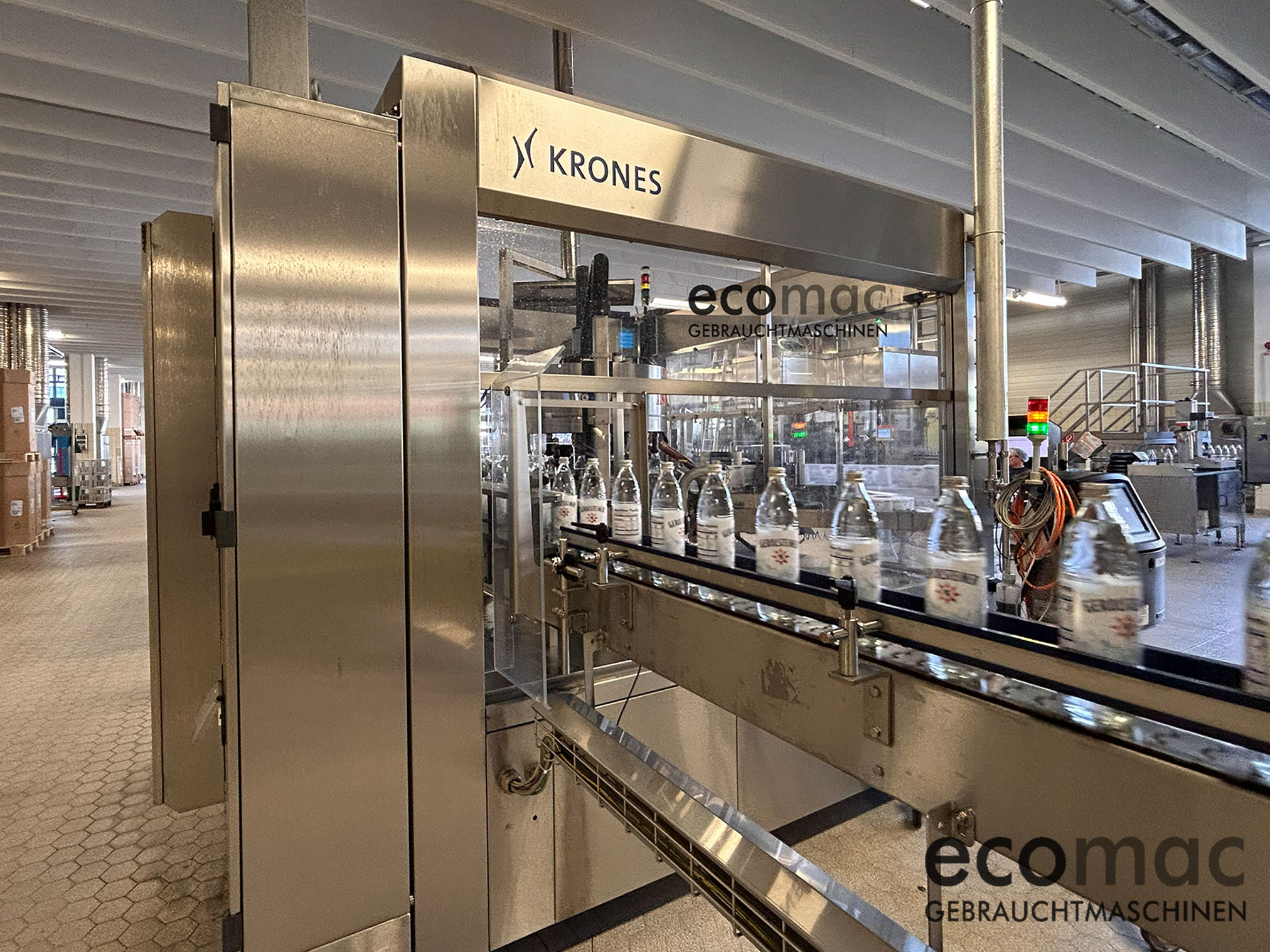

The Krones labelling machine offered here is suitable for the application of wrap-around labels using hot-melt glue. It was manufactured in 2013, and an inspection can be arranged upon request. Please feel free to contact us if you are interested.
| Output range | 4.000 - 23.000 bottles/h |
|---|---|
| Bottle table | with driven belt |
| Labelling Station | Contiroll labelling station 2-3-340 |
| cutter drum D=240 mm, 2-knives | |
| vacuum cylinder D=360 mm, 3-sections | |
| label length min. 175 - max. 340 mm | |
| labelling station height adjustable with servo drive for label length adjustment | |
| leading and trailing edge gluing | |
| reel holder for two label reels - automatic splicing | |
| register mark detection with colour contrast sensor | |
| Container infeed | for one infeed worm |
| Height adjustment | motorised |
| Safety installation | integrial machine guarding in lift-up door design |
| Operation | 15" Clean Design colour display with ZenOn Visualisation |
| Network | TN-C-net |
| Voltage | 400 V / 50 Hz |
| Control unit | Siemens S7 300 |
| Control cabinet | stand alone |
| Label check | Krones Checkmat 731 EM |
| Label check via camera | |
| Inspection for presence and correct alignment | |
| Discharge via Ecopusher |
Details
Number
10-25275
Product
Krones
Model
Contiroll 720-15
Performance
23.000 b/h
Equipment
Wraparound label from a reel
Year
2013
Delivery
Dec 2026
Batch
standard
Direction
L-R
